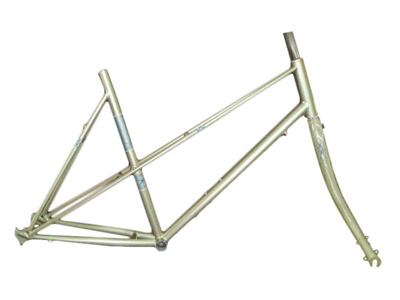

FRAME OR8 MIXTI CRMO 700 MIXER PLTNM wFORK

• NEW Triple Butted 4130 Chromoly construction
• Classic twin top tube Mixte design
• Fully geared cable routing
• Double rack and fender mounts front and rear
• 1-1/8" threadless headset
• 68mm BB shell; 31.8mm Frt derailleur (bottom pull)
• Setup for 55-73mm reach brakes and 45c tires
• Kit includes: frame, seat collar and barrel adjuster
• Size:42/50/54/58cm


FRAME OR8 SCOUT 29 2012 CRMO BK-SHEEN

• * NEW lighter 4130 Triple butted heat treated chromoly frame and& fork (200g lighter)
• Integrated chain tensioners; Completely removable brake cable guides
• * NEW Disc dropout allows easier rear wheel removal
• * NEW CNC Ally head badge and relieved heaqd tube
• OS chainstays with 2.4 tire clearance
• Designed for suspension; 497mm axle to crown
• 27.2mm seat post; 73mm bb shell
• 31.8mm top swing front derailleur; 1 1/8" TL headset
• Size:17"/19"/21"

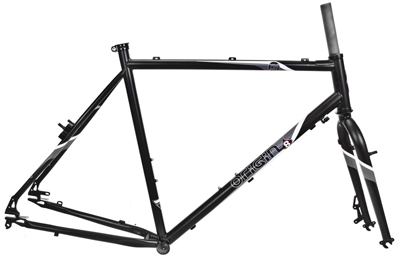

FRAME OR8 TRK CRMO D-PAS 50cm wFK 2012WH

• * New lighter 4130 Triple butted heat treated chromoly frame and& fork (200g lighter)
• Integrated chain tensioners; Completely removable brake cable guides
• No decals under the clear coat; * New CNC Alloy head badge
• All sizes can bar spin with a 35c tire
• Designed for 47-57mm reach brakes (35c max)
• 27.2mm seatpost; 1 1/8" threadless headset
• 120mm spacing; New curved seat tube design
• Frame and fork feature rack eyelets
• Kit includes: frame, fork and seat collar
• Size:50/53/56/59cm

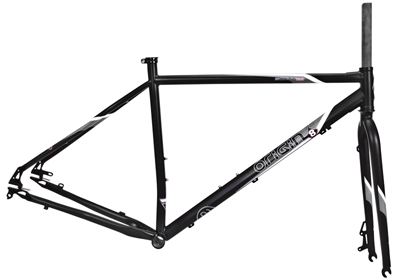

FRAME OR8 CRS CRMO BTD CX700  wFK BK2011

• • 4130 Triple butted heat treated chromoly frame and fork
  • Removable cantilever and disc brake mounts ; Removable cable guides
  • Custom machined dropout with integrated tensioners
  • 27mm ovalized chainstays w/ 2.1 (52c) clearance
  • *2011 Black version (machined head tube; alloy head badge; 200g lighter weight)
  • Horizontal dropout with derailleur hanger
  • 5.6 lb weight (50cm)
  • Designed for 38T x 48T or less rings (MTN crank)
  • 27.2mm seatpost; 1 1/8' Threadless headset
  • 132.5mm spacing for road or Mtn hubs
  • Includes rear brake cable hanger
  • size：50/53/56/59cm
